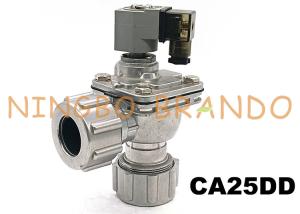

CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse

Brand Name : Brando

Model Number : CA25DD

Certification : CE, ISO

Place of Origin : China

MOQ : 1 piece

Price : Negotiation

Payment Terms : T/T, Western Union, PayPal

Supply Ability : 10000 pcs per month

Delivery Time : 4 to 7 working days

Packaging Details : Inner Box, Carton, Pallet

Port Size : 1 Inch

Valve Series : DD Series

Valve Structure : Dresser Nut

Coil Voltages : DC24V, AC110V, AC220V

Diaphragm Material : NBR, FKM

Working Pressure Range : 0.35 To 0.85 MPa

Contact Now

CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse

DD series pulse jet valve is with double head inlet and outlet air port high performance diaphragm valve. Optional with solenoid guide valve
electrically controlled pulse valve or pneumatic pulse valve without pilot valve. These include all bag filters, cartridge filters, envelope filters, ceramic filters and sintered metal fiber filters.

Specification of DD Series Pulse Jet Valves:

Model No
CA20DD
CA25DD
CA45DD
Port Size
3/4''
1''
1 1/2''
Pipe Connection
Dresser Nut
Diaphragm Number
1
1
2
Working Pressure Range
0.35 to 0.85 MPa (5 to 125 PSI)
Diaphragm Material
NBR, FKM, EPDM
Valve Body Material
Aluminum Alloy


Main Dimension of CA25DD Pulse Jet Valve:

CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse

Ordering Code of DD Series Pulse Jet Valve:

CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse

Video of CA25DD Pulse Jet Valve:

More Goyen Type Pulse Jet Valves for you to choose:

CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse
T Series DD Series FS Series MM Series
CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse
RCA Series Solenoid Coil Solenoid Armature Diaphragm
